MOTOR  REPAIR

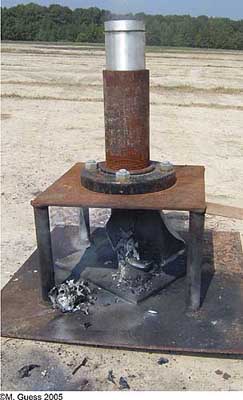

From this...

 76-3600Ns

To this...

 76-2200Ns

RECOVERED

Originally a 76-6000Ns case.               Now a 76-4800Ns case.

RECOVERED

Snap ring grooves are machined with a chamfered edge on the inside of the groove. The helps to prevent bulkhead or nozzle o-ring damage during installation.
This does not affect the snap ring’s ability to hold pressure.

TIP: Use internal spiral rings instead of snap rings They are available as medium to medium heavy thickness and will fit Loki, AMW snap ring grooves.
Better holding retention.
No tool is necessary for installing.
A $1.00 paint can key is used to remove the ring.

PRICES

 Restore your case to like new condition, for as low as half the price of a new one!

  Includes:
 (1) OD inspection and measurement.
 (2) ID inspection, measurement and cleaning.
 (3) Cut to length to your recommended geometry.
 (4) Machining end/s and groove/s.
 (5) Fitted with new internal snap ring/s.

  CONTACT

Cut length, not initial length of damaged tube.

Cut Length

6”- 12”

12.1”- 24”

24.1”- 30”

30.1”- 35”

30.1”- 35”max.

38mm

$15

$21

$25

$28

$32

54mm

$20

$25

$28

$32

$40

76mm

$20

$27

$32

$40

$50

98mm

$25

$35

$43

$53

$65

 If only one end needs repair, take 10% off prices in Yellow.

*Cases with stuck liners, nozzles, bulkheads-may incur an extra removal charge.

Click here for Custom

Have a wildcat grain geometry, but not the right case?
 Custom cases, nozzles and bulkheads available at
Click Here.
